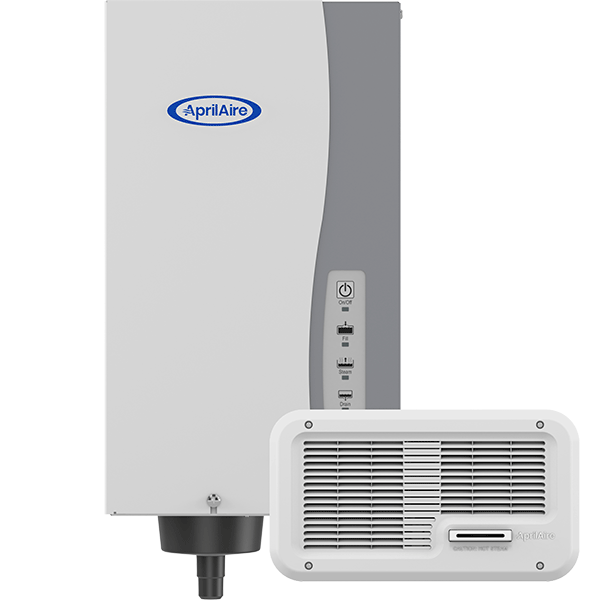

Aprilaire 865 Steam Humidifier (After November 2014)

Search Results for

    Select a diagram to view its parts

    Parts

    Diagram

    Parts
    1
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15B
    16
    17A
    17B
    18
    19

    Parts

    1. 1
      Strainer Screen
      $9.32
    2. 3
      Transformer
      Transformer
      SKU: 5306
      $173.71
    3. 4
      Electrode Wire
      $37.95
    4. 5
      Drain Valve
      Drain Valve
      SKU: 4983
      $538.20
    5. 6
      Fill Valve
      Fill Valve
      SKU: 5531
      $111.95
    6. 7
      Drain Cup
      Drain Cup
      SKU: 4985
      $89.30
    7. 8
      Front Panel & Screw
      $97.12
    8. 9
      Electrical Access Panel & Screw
      $112.70
    9. 10
      Safety Interlock Switch
      $40.77
    10. 11
      Fill Cup and Hoses
      $109.02
    11. 12
      Fill Cup Cap
      Fill Cup Cap
      SKU: 4990
      $7.88
    12. 13
      Steam Dispersion Tube & Screws
      $91.54
    13. 14
      Steam Canister & O-Ring
      $135.00
    14. 15B
      Automatic Humidistat Controller
      $188.03
    15. 16
      Control Board
      Control Board
      SKU: 5530
      $134.90
    16. 17A
      Fan Pack Grille
      Fan Pack Grille
      SKU: APR5662
      $71.36
    17. 17B
      Grille
      Grille
      SKU: 4998
      $127.65
    18. 18
      Fan
      Fan
      SKU: 4999
      $148.87
    19. 19
      O-Ring
      O-Ring
      SKU: 5258
      $10.93

    Parts Not In Diagram

    1. Not Shown
      Transformer
      Transformer
      SKU: 5529
      $64.00
    2. Not Shown
      Saddle Valve
      Saddle Valve
      SKU: 4001
      $10.00
    3. Not Shown
      Drain Trap
      Drain Trap
      SKU: 4028
      $163.24
    4. Not Shown
      Airflow Switch
      $162.96
    5. Not Shown
      High Humidity Limit Switch
      $466.21
    6. Not Shown
      Blower Activation Relay
      $58.13
    7. Not Shown
      High Temperature Condensate Pump
      $173.54
    8. Not Shown
      Steam Hose Kit
      $116.90
    9. Not Shown
      Drain Hose Kit
      $110.69
    10. Not Shown
      Condensate Tubing
      $67.56
    11. Not Shown
      Steam Humidifier Fan Pack
      $1,109.29
